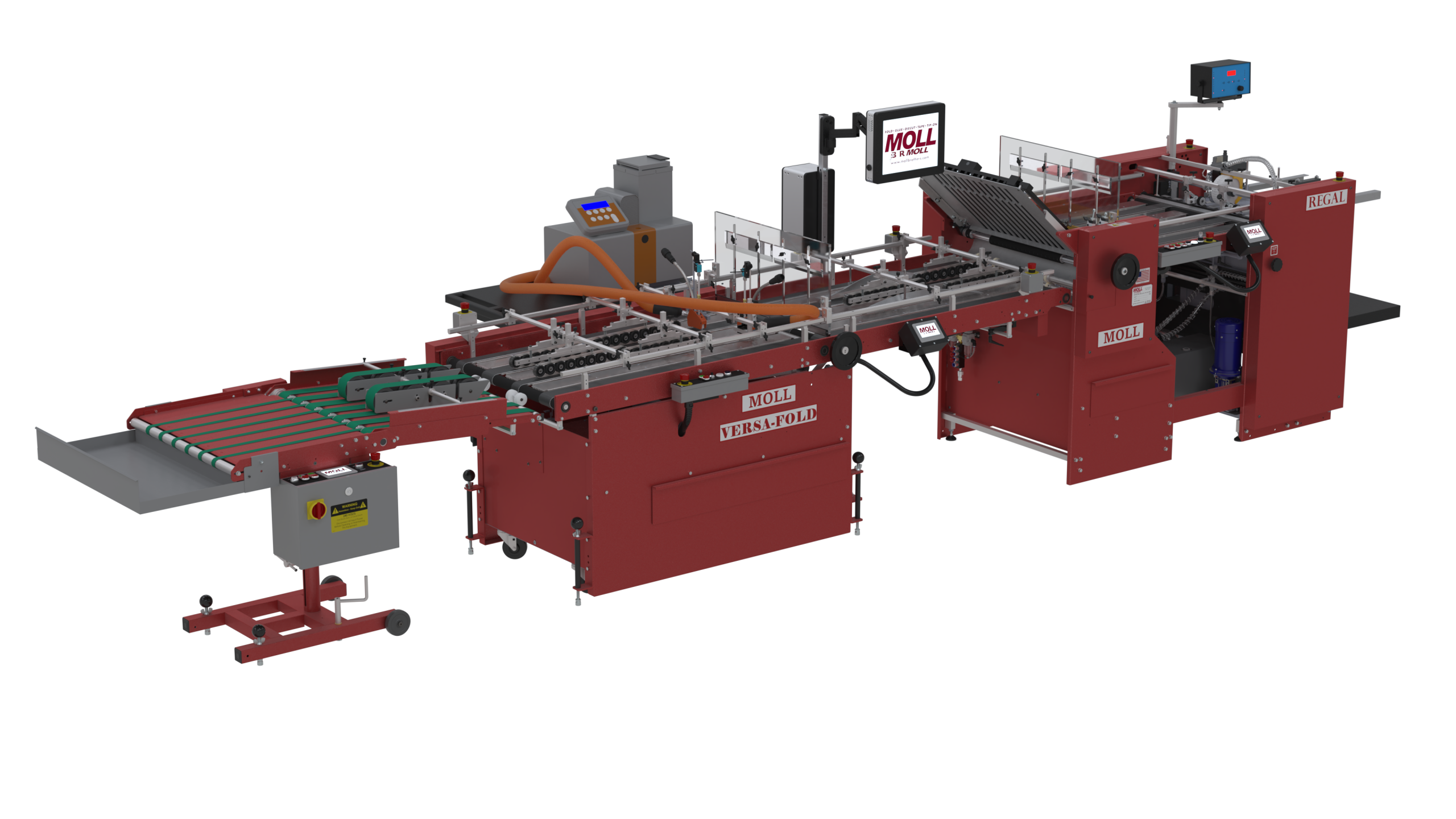

Regal System
- Economical footprint
- Pile fed – anti marking
- Quick set up
- Belt drive
- Etched railing for quick change overs
- Built in sheet spacer, batch counter, DC controls and more
- Equipped with two and three inch wide drive belts on top of removable filler pans
- Dual pump system
- Ability to bump-n-turn a sheet
Industries/Consumers served
POP, pharmaceutical, accounting/financial institutions, commercial print, and more!
Specifications
| Imperial | Metric | |
| Material | Cover Stock Paper, Heavy Board | Cover Stock Paper, Heavy Board |
| Paper weight | 70lb Cover to 28pt Stocks | 140 –600 g/m² |
| Minimum product size (WxL) | 5.5 x 5.5 inches | 139 x 139 mm |
| Maximum product size (WxL) | 30 x 30 inches | 762 x 762 mm |
| Maximum linear speed | 425ft/min | 130m/min |
| Power connection | 220V, 3PH, 30AMP, 60 HZ | 400V, 3PH, 30AMP, 50 HZ |
| Compressed air connection | 90 PSI | .7 mPa |
Pattern Controllers
Hot Glue Systems
Cold Glue Systems
Tape & Tear Strip Applicators
Silicone Liner Applicator
Servo Card Tipper
Servo Labeler
Two-Up Feeding
Vacuum Assist Feeding
Vacuum Systems
Trombone
Dial stacker
Pressing stacker
EZ Lift Stacker
