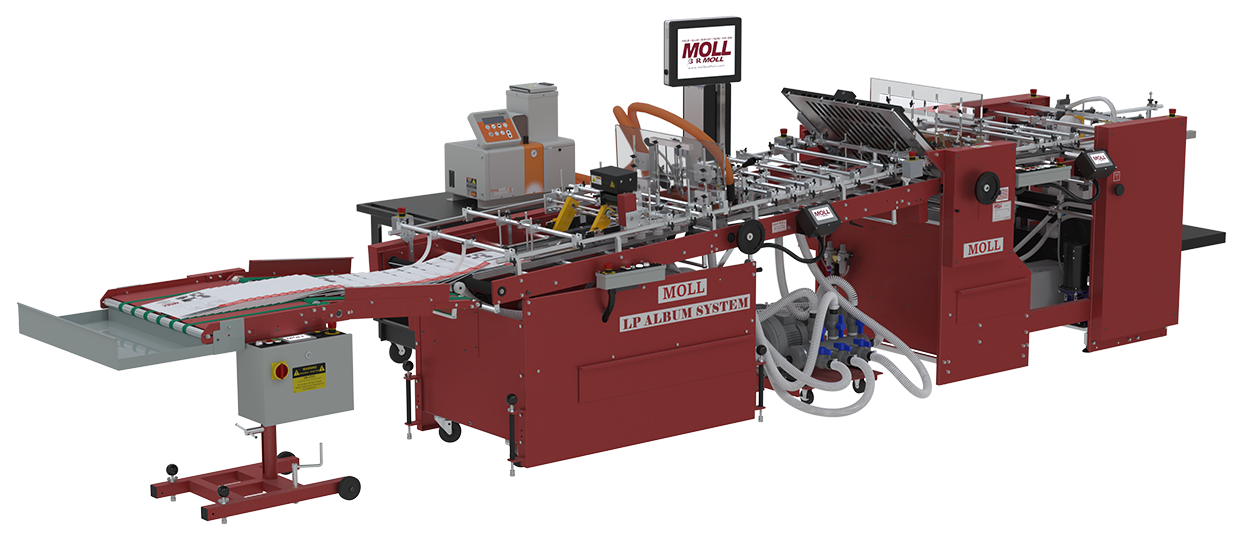

Moll LP Record Album Folding Machine

Moll’s new LP Record Album Folding System’s ability to handle lightweight inner sleeve (with or without holes) to capacity LP Albums allows the machine to stand in its own class. The change-over time makes it flexible enough to handle a wide variety of jobs. It can be configured to produce a range of finished pieces, gate fold albums, CD/record sleeves, digipacks, capacity spine flat side LP’s, and three sided capacity LPS. Designed as an all belt-driven in-line system, it’s tipper fold plate features an anti-marking roller accommodating stocks up to 28pt+.

30” wide format
Buckle Fold Plate with removable ribs and an all stainless steel back plate to eliminate marking and static build-up
Tipper Fold Plate with dual anti-marking rollers which allow for heavier stocks to be folded
All Belt drive
Optional bottom fold plate
Dual pump system
Ability to bump-n-turn a sheet
Vacuum Belt System
Capacity Jump-roll
Cold Glue System
Hot Glue System
Capacity Forming Attachment
Independent Upper Drive Capacity System

Specifications

	Imperial	Metric
Material	Cover Stock Paper, Heavy Board	Cover Stock Paper, Heavy Board
Paper weight	70lb offset semi gloss to 28pt Stocks	110 – 500 g/m²
Minimum product size (WxL)	5.5 x 5.5 inches	139 x 139 mm
Maximum product size (WxL)	30 x 30 inches	762 x762 mm
Maximum linear speed	425ft/min	130m/min
Power connection	220V, 3PH, 30AMP, 60 HZ	400V, 3PH, 30AMP, 50 HZ
Compressed air connection	90 PSI	.7 mPa
