Digi-mollpak System

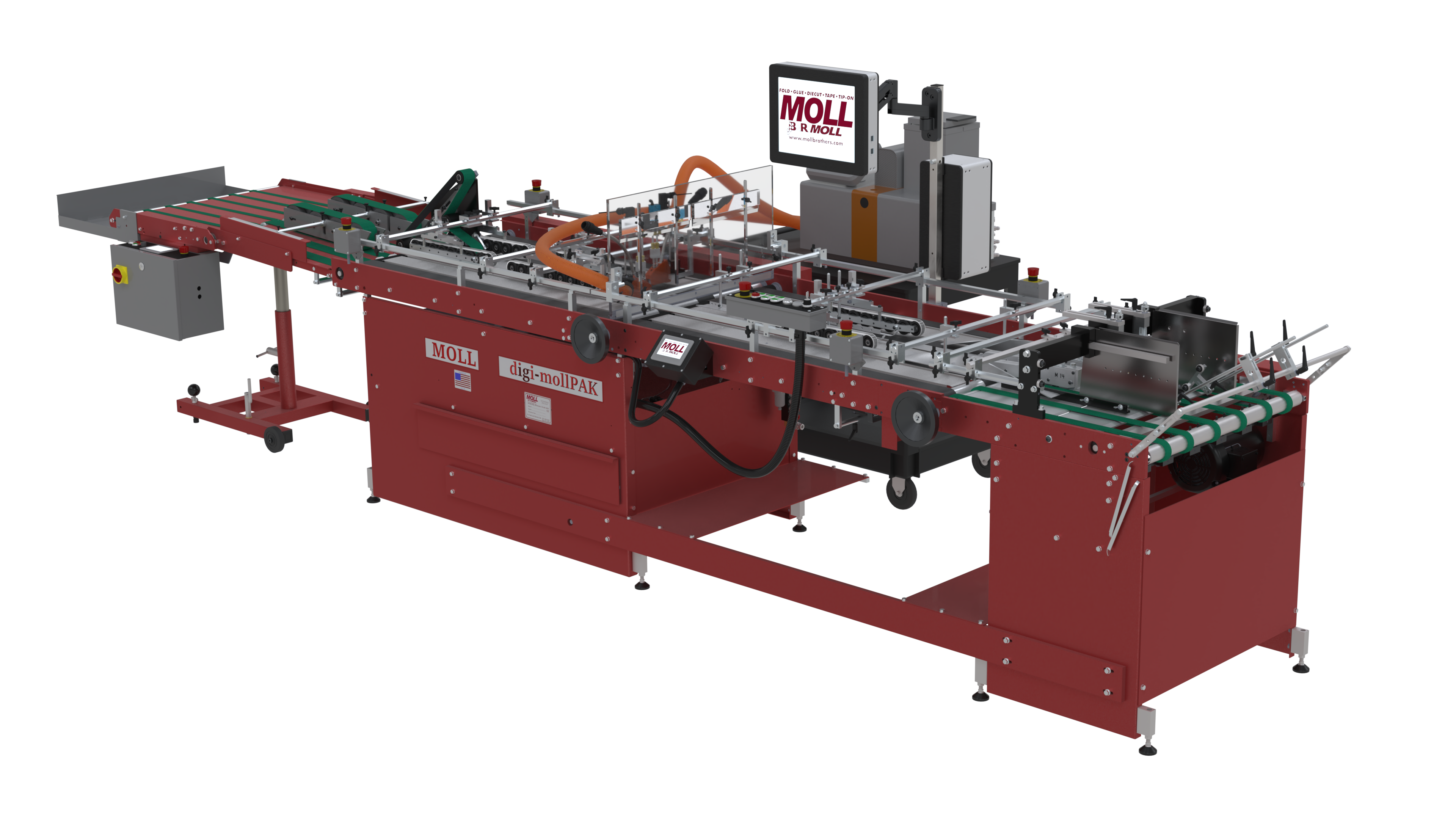

The B&R Moll digi-mollPAK System In-line folder/gluer is the most versatile machines for digital and commercial printers designed to offer fast, flexible performance in a compact machine that delivers complex packaging jobs at an affordable price. The digi-mollPAK line is ideally suited for producing straight-line boxes, room key holders, table tents, sleeves, CD wallets, computer software cartons and presentation folders. An optional kit for producing auto-lock bottom boxes is available. The friction Feeder section offers continuous feed for not just regular shaped product, but irregular as well. Moll’s new etched rails make it incredibly easy to change jobs over multiple time a day without sacrificing run speeds.

Features

Economical footprint
Friction fed
Belt drive
Vacuum infeed belts for lighter stocks
Etched railing for quick change overs

Industries/Consumers served

Food, beverage, cosmetic, POP, pharmaceutical, sports packaging, consumer packaging, home and office packaging, industrial packaging, commercial print, mailing, sample packets, and more!

Specifications

	Imperial	Metric
Material	Cover Stock Paper, Heavy Board	Cover Stock Paper, Heavy Board
Paper weight	70lb Cover to 28pt Stocks	140–500 g/m²
Minimum product size (WxL)	2 x 4 inches	50 x 102 mm
Maximum product size (WxL)	26×20“ or 36×20”	920x508mm or 1016×508 mm
Maximum linear speed	425ft/min	130m/min
Power connection	220V, 3PH, 60AMP, 60 HZ	400V, 3PH, 60AMP, 50 HZ
Compressed air connection	90 PSI	.7 mPa
