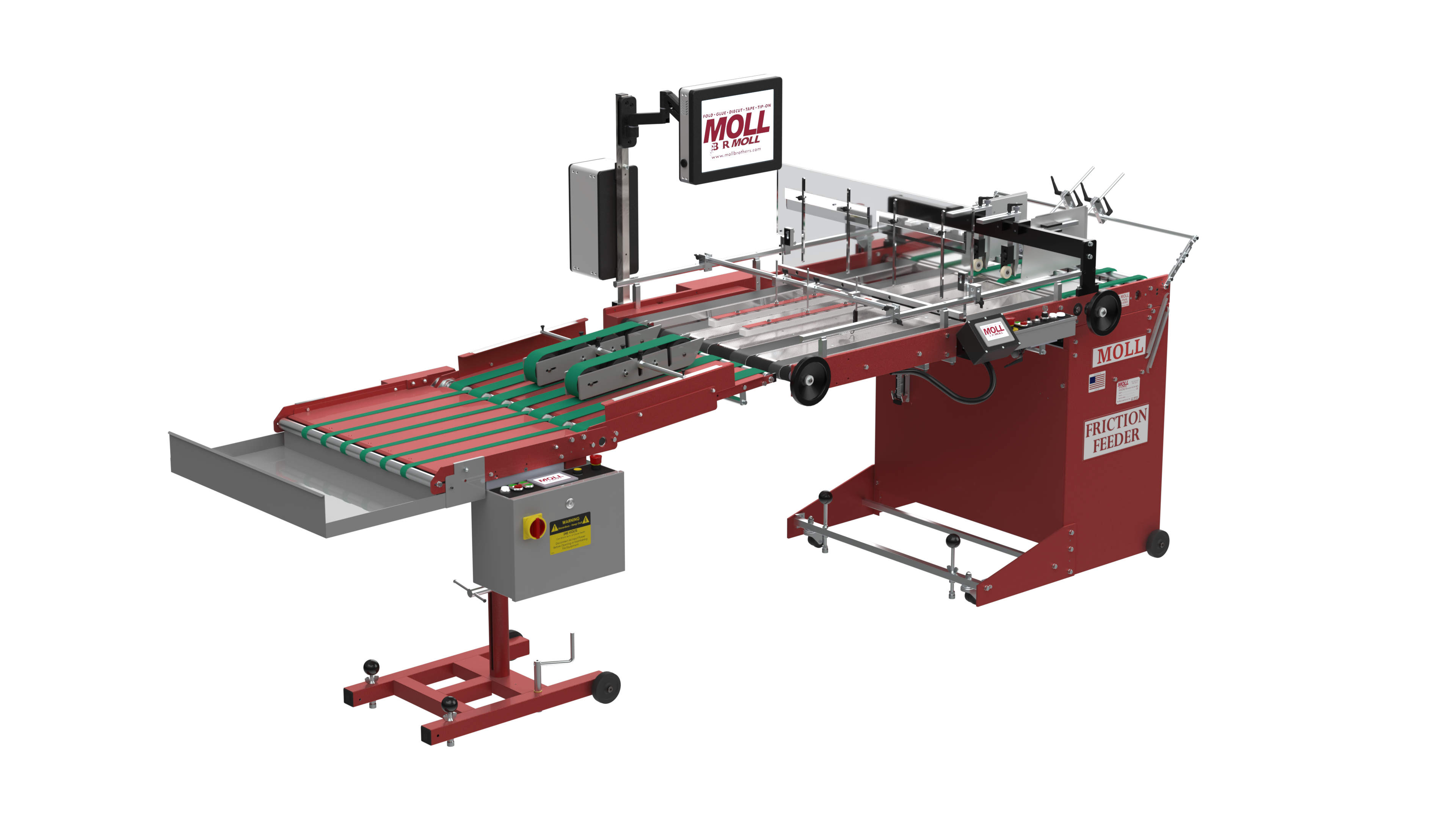

The Moll Compact is one of the most condensed folding systems in the market today. Due to its design based upon the Vantage 720 System, this friction fed folder/gluer system offers versatility for your small formats. Ideal for folding pillow packs, straight-line cartons, table tents, along with room key card holders and coffee cup sleeves. With the appropriate attachments you can apply double sided tape and fold pocket of a pocket folder. Its economical footprint makes it ideal for space saving needs. You can always add a Versafold in the future in order to produce larger work and auto-lock cartons.
Features
- Economical footprint
- Friction fed
- Belt drive
- Vacuum infeed belts for lighter stocks
- Etched railing for quick change overs
Types of Cutting
- Die Cutting
- kiss cutting
- scoring
- slitting
- perfing
Industries/Consumers served
Food/beverage, games, greeting cards, business cards, health care, POP, pharmaceutical, accounting/financial institutions, commercial print, and more!
Specifications
| Imperial | Metric | |
| Material | Cover Stock Paper, Heavy Board | Cover Stock Paper, Heavy Board |
| Paper weight | 70lb Cover to 28pt Stocks | 140–500 g/m² |
| Minimum product size (WxL) | 5.5 x 5.5 inches | 139 x 139 mm |
| Maximum product size (WxL) | 33 x 25 inches | 838 x 635 mm |
| Maximum linear speed | 425ft/min | 130m/min |
| Power connection | 220V, 3PH, 30AMP, 60 HZ | 400V, 3PH, 30AMP, 50 HZ |
| Compressed air connection | 90 PSI | .7 mPa |
Options
- Double Sided Tape Head
- Tear Tape Applicator
- Tipper plate with air blast (for folding the pockets on folders)
- Room key card kit
- Versafold
- Drop in registration
- Cold Glue System
- Hot Glue System
